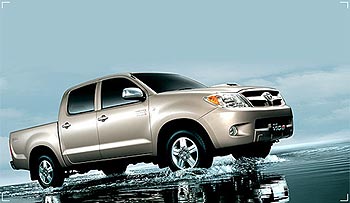

Toyota Hilux Vigo Double Cab Import Export and Sales

Soni Motors Thailand is proud to be Thailand's largest exporter of Double Cab Toyota Hilux Vigo while Jim 4x4 Thailand is Thailand's largest exporter of nearly new or quality used Double Cab Toyota Hilux Vigo or Toyota Hilux Tiger. Email us now at sonivigo@gmail.com for your very own Toyota Vigo or Toyota Hilux Tiger.

Double Cab Vigo G and E

Grade

3.0 G AUTO
3.0 G
3.0 E
2.5 E
Model Code
KUN26R-PRPSYT ( AX )
KUN26R-PRMSYT ( AW )
KUN26R-PRMSYT ( AV )
KUN25R-PRMSHT ( AS )
Size and Weight
Outside dimension mm.
5130 x 1835 x 1820 ( L x W x H )
Wheel length mm.
3085
Wheel width mm.
1540 x 1540 ( Front / Back wheel )
Ground clearance mm.
227

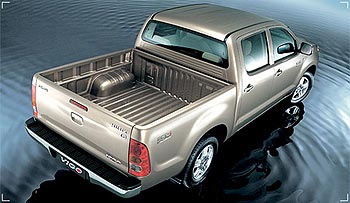

Tray interior mm.
1515 x 1520 x 450 ( W x L x H )
Interior mm.
1475 x 2130 x 1195 ( W x L x H )
Weight (approximately) kg.
1870
1845
1825

Engine
Engine model
1KD FTV
2KD-FTV ( I/C )
Engine type
4 Cylinder DOHC 16 valve variable nozzle turbo & intercooler
4 Cylinder DOHC 16 valve
variable nozzle turbo & intercooler
Displacement cc.
2982
2494
Bore x Stroke mm.
97.0 x 103.0
92.0 x 93.8
Compression ratio
17.9 : 1
18.5 : 1
Max output (SAE net) kw(EEC net)/rpm
120 ( 163 ) / 3400
88 ( 120 ) / 3600
Max torque (SAE net ) (N-m)/rpm
343 / 1400 - 3200
320 / 2000
Fuel providing system
Direct Injection Commonrail type
Fuel tank capacity litre
76
Emission Standard
Euro 3

Chassis
Driving system
4 speed automatic
5 speed manual
Gear ratio                        : 1
2.804
4.313
                                        : 2
1.531
2.330
                                        : 3
1
1.436
                                        : 4
0.705
1.000
                                        : 5

0.838
                              Reverse
2.393
4.220
Final gear ratio         Per 1
3.909
3.583
3.909
Suspension            Front


Independent-wishbone, torsion bar with stabilizer and automatic cutout ( A.D.D. )
                                Back
Rigid-elliptic leaf springs with limited slip
Brake                      Front
Ventilated Discs
                                Back
Drum with brake oil valve SUPER LSPV with LTS
Steering
Power assisted Rack and Pinion
Min. turning radius m.
6.2
Tyre
265 / 70R16
Wheel

Alloy wheel size 7JJ x 16

General equipment
Exterior

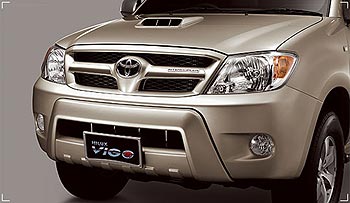

Bumper bar Body Coloured

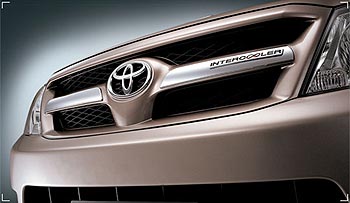

Front grill Body Coloured with Chrome

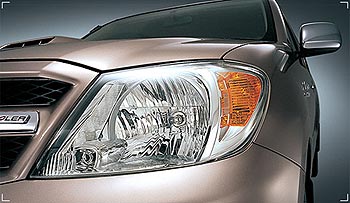

Front light Halogen multi reflector
Door mirrors Chrome Electronically Adjustable
Mud flaps Only 2 wheels at back side
Door handles ( Grip Type ) Chrome
Wiper Time Setting

Interior

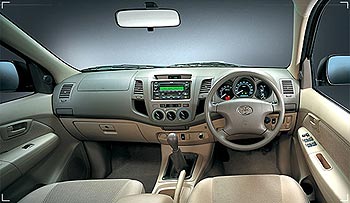

Instrument panel :
                   Tachometer
                   Kilometer
Digital
Warning signal :
Fuel level

Oil filter light

Headlight- turn off
warning sound

Key warning sound

Door-closed warning light

Seat-belt warning light
On driver side
Interior lights :
Map light

Cabin light

Key light

Ashtray

With Light

Rear mirror Reduction of light -reflecting
Audio :
Radio-cassette

Speakers

4
Antenna
Front position
Audio :
Radio-cassette

Speakers
4
Antenna
Front position

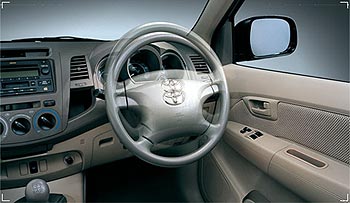

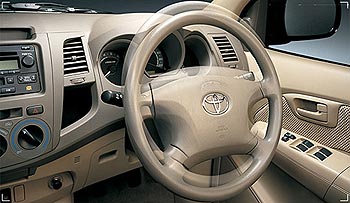

Steering wheel    Adjustable

Type
Urithene 4 spokes
Urithene 3 spokes

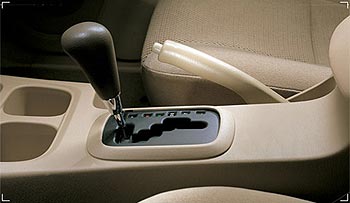

Hand brake
at center console
Transmission 4 x 4


Sun visor :
Driver side
With name card keeper
Passenger side
With small mirror
Power windows

Central lock
Key remote

Alarm system and key immobilzer

Power socket
1 Socket 12 Voltages
Interior handles
3 positions at front and 2 positions at back
Door console :
Type
Standard
Material
Velvet
Arm rest
Front and back

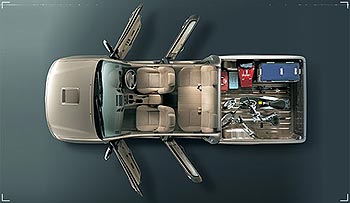

Seats :

Type
Separated type
Material
Velvet creamy colour
Front seats :
Adjustable
Backward adjusting

Height level adjusting

Pillow

Back seats : Type
Foldable
Pillow

Fuel cap release

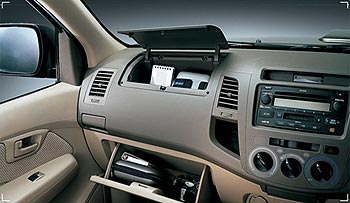

Glove box :
Center console
With cover
Top console

Bottom console
With key

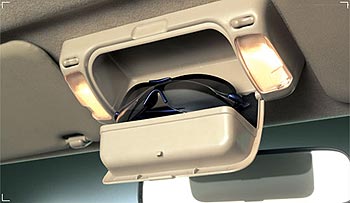

Sun glass box
Same position of light map
Door console
4 doors with bottle holder
Cup holder :
2 positions at front console
1 position at center console

With key

With bottle holder
Cup holder :
2 positions at front console
2 positions at front console
2 positions at center console
1 position at center console
2 positions at back
2 positions at back

Foot rest

Active Safety
ABS
Third brake light

Fog lights
Heated rear windscreen

Interior door locking
2 back doors


Passive Safety
GOA Body
Side racks
Front and back
Windscreen
Safety glass
Air bag
Only driver side
Seat belts
Front seats
ELR 3 points 2 positions
Rear seats
ELR 3 points 2 positions and NR 2 points 1 position
Adjustable
Front passenger seat and drive seat
Collision protection body
Collapsable steering wheel
Side impact protection
Automatic oil valve cutting
Extra Equipments
Air-con

With control switch rotate-type

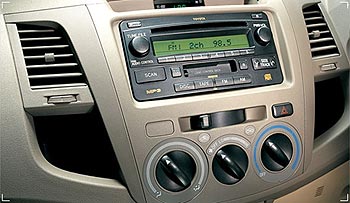

Audio 1 CD with MP3
With 6 speakers

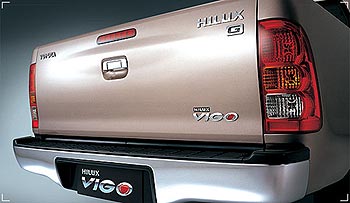

Rear bumper
Chrome
Wheel arch
Body coloured
Side step
Fog lights






Vigo Double Cab Specifications G 3.0

Model grade G 3.0 A/T G 3.0 M/T
ENGINE
Model 1KD-FTV
Type 3.0 Liter Diesel, 4-Cylinder, 16-Valve, DOHC Variable Nozzle Turbo w/ Intercooler
Displacement cc 2,982
Maximum Output Hp/rpm 163 / 3,400
Maximum Nm / rpm 343 / 1,400 - 3,200
Transmission 4-Speed Automatic, Gate Type w/ ECT 5-Speed Manual
Fuel System Direct Injection Common Rail (D-4D)
CHASSIS
Suspension front front / rear Double Wishbone with Coil Springs and Stabilizer / Rigid Axle, Leaf Spring
Brake front / rear Ventilated Disc / Leading-Trailing Drum
Steering System Rack and Pinion with Power Assist
Tires / Wheels 255 / 70 R15 7JJ x 15" Alloy
Drivetrain 4 x 4 Auto Disconnect Differential (A.D.D.)
DIMENSION AND WEIGHT
Overall length x width x height 5,255 x 1,835 x 1,810
Wheelbase 3,085
Thread: front / rear 1,540 / 1,540
Ground Clearance 212
Gross Vehicle Weight 2,790
Curb Weight 1,880 1,860
Minimum Turning Radius 6.5
Fuel Tank Capacity 76
Seating Capacity 5
EXTERIOR
Headlamps Multi-Reflector Halogen
Front Foglamps Multi-Reflector Halogen
Bumper front Color Keyed
Bumper rear Chrome
Front Grille Chrome Color Keyed
Front Windshield Wiper Intermittent Time Adjuster + Mist
Overfenders Color Keyed
Side Turning Lamp Markers With
Outside Rear View Mirror Chrome
Door Outside Handle Chrome
Side Step With
INTERIOR
Seats front Sliding / Reclining with Headrest (2 pcs) and Driver Vertical Height Adjustment
Seats rear Foldable with Headrest and Tool Box Compartment
Seat Materials Full Moquette
Speedometer Analog
Tachometer With
Odometer Digital
Steering Wheel and Column 4 - Spoke / Tilt-Adjustable
Map Lamp With + Header Box
Clock Digital
Shift Knob / Shift Boot Urethane
Console Box Dual with Lid
Cupholders / Bottle Holders front Instrument Panel (2 pcs) + Door Trim (2 pcs)
Cupholders / Bottle Holders rear Console Box (2 pcs) + Door Trim (2 pcs)
Sunvisor Driver (with ticket holder) + passenger (with Vanity Mirror)
Door Trim Moulded, Fabric
Door Packets Front and Rear
Inner Rear View Mirror Day and Night
FUNCTION
Power Features Window, Doorlock, Outside Rear View Mirror
Cigarette Lighter With Illumination
Accessory Power Outlet Front (12v)
Airconditioning System Single, Manual
Key Remind With
Antenna Pillar Mounted
Vehicle Security System With Keyless Entry
SAFETY
SRS Airbag Driver Side
Seatbelts front / rear 3-point ELR x 2 / 3-point ELR x 2 + 2-point NR x 1
Child Proof Lock With
High Mount Stop Lamp With (Tail Gate Integrated), LED Type
Side Door Impact Beam With




Vigo 2WD Double  Cab

Model :

Hilux Vigo Double Cab 1KD 3.0 G Auto

Hilux Vigo Double Cab 1KD 3.0 G

Hilux Vigo Double Cab 2KD 2.5 J

Hilux Vigo Double Cab 2KD 2.5 J-PS

Engine Type :

1KD-FTV Inline 4 DOHC VN Turbo Intercooler

1KD-FTV Inline 4 DOHC VN Turbo Intercooler

2KD-FTV Inline 4 DOHC VN Turbo

2KD-FTV Inline 4 DOHC VN Turbo

Engine Capacity :

2982

2982

2494

2494

Style :

Double Cab

Double Cab

Double Cab

Double Cab

Driving System :

2WD

2WD

2WD

2WD

Transmission :

Automatic 4 speed

Manual 5 Speed

Manual 5 Speed

Manual 5 Speed

Vigo 4WD Double Cab

Model :

Hilux Vigo 4WD Double Cab 1KD 3.0 G Auto

Hilux Vigo 4WD  Double Cab 1KD 3.0 G Manual

Hilux Vigo 4WD Double Cab 1KD 2.5 E Manual

Hilux Vigo 4WD  Double Cab 2KD 2.5 E Manual

Engine Type :

1KD-FTV Inline 4 DOHC VN Turbo Intercooler

1KD-FTV Inline 4 DOHC VN Turbo Intercooler

1KD-FTV Inline 4 DOHC VN Turbo Intercooler

2KD-FTV Inline 4 DOHC VN Turbo Intercooler

Engine Capacity :

2982

2982

2982

2494

Style :

Double Cab

Double Cab

Double Cab

Double Cab

Driving System :

4WD

4WD

4WD

4WD

Transmission :

Automatic 4 speed

Manual 5 Speed

Manual 5 Speed

Manual 5 Speed

Grade E  2.5

Model grade HILUX E (KUN15L-PRMSYM)K}K}
ENGINE
Model 2KD-FTV
Type 2.5 Liter Diesel, 4-Cylinder, 16-Valve, DOHC Variable Nozzle Turbo
Displacement cc 2,494
Maximum Output Hp/rpm 102 / 3,600
Maximum Nm / rpm 200 / 1,400 - 3,400
Transmission 5-speed M/T
Fuel System Direct Injection Common Rail (D-4D)
CHASSIS
Suspension front / rear Double Wishbone with Coil Springs and Stabilizer / Rigid Axle, Leaf Spring
Brake front / rear Ventilated Disc / Leading-Trailing Drum
Steering System Rack and Pinion with Power Assist
Tires / Wheels 205/70 R15 7JJ x 15" Alloy
Drivetrain 4 x 2
DIMENSION AND WEIGHT
Overall lenght x width x height 5,255 x 1,760 x 1,695
Wheelbase 3,085
Thread: front / rear 1,510 / 1,510
Ground Clearance 181
Gross Vehicle Weight 2,650
Curb Weight 1,655
Minimum Turning Radius 6.3
Fuel Tank Capacity 76
Seating Capacity 5
EXTERIOR
Headlamps Multi-Reflector Halogen
Front Foglamps Without
Bumper front Color Keyed
Bumper rear Crome
Front Grille Color Keyed
Front Windshield Wiper Intermittent Time Adjust + Mist
Overfenders Without
Side Turning Lamp Markers With
Outside Rear View Mirror Chrome
Door Outside Handle Chrome
Side Step Without
INTERIOR
Seats front Sliding / Reclining with Headrest (2 pcs) and Driver Vertical Height Adjustment
Seats rear Foldable with Headrest and Tool Box Compartment
Seat Materials Full Moqutte
Speedometer Analog
Tachometer With
Odometer Digital
Steering Wheel and Column 3 - Spoke / Tilt-Adjustable
Map Lamp Without
Clock Digital
Shift Knob / Shift Boot Urethane
Console Box Dual with LID
Cupholders / Bottle Holders front Instrument Panel (2 pcs) + Door Trim (2 pcs)
Cupholders / Bottle Holders rear Door Trim (2 pcs)
Sunvisor Driver (with ticket holder) + Passenger (with Vanity Mirror)
Door Trim Moulded, Fabric
Door Packets Front and Rear
Inner Rear View Mirror Day and Night
FUNCTION
Power Features Window, Doorlock, Outside rear view mirror
Cigarette Lighter With illumination
Accessory Power Outlet Front (12v)
Airconditioning System Single, Manual
Key Remind Without
Antenna Pillar Mounted
Vehicle Security System With Keyless Entry
SAFETY
SRS Airbag Driver
Seatbelts front / rear 3-point ELR x 2 / 3-point ELR x 2 + 2-point NR x 1
Child Proof Lock With
High Mount Stop Lamp With (Tail Gated Integrated)
Side Door Impact Beam With

Hilux J 2500 cc

Model grade HILUX J (KUN15L-PRMDYM)
ENGINE
Model 2KD-FTV
Type 2.5 Liter Diesel, 4-Cylinder, 16-Valve, DOHC Variable Nozzle Turbo
Displacement cc 2,494
Maximum Output Hp/rpm 102 / 3,600
Maximum Nm / rpm 200 / 1,400 - 3,400
Transmission 5-speed M/T
Fuel System Direct Injection Common Rail (D-4D)
CHASSIS
Suspension front front / rear Double Wishbone with Coil Springs and Stabilizer / Rigid Axle, Leaf Spring
Brake front / rear Ventilated Disc / Leading-Trailing Drum
Steering System Rack and Pinion with Power Assist
Tires / Wheels 195 R14C Steel
Drivetrain 4 x 2
DIMENSION AND WEIGHT
Overall lenght x width x height 5,130 x 1,760 x 1,695
Wheelbase 3,085
Thread: front / rear 1,510 / 1,510
Ground Clearance 181
Gross Vehicle Weight 2,650
Curb Weight 1,645
Minimum Turning Radius 6.3
Fuel Tank Capacity 76
Seating Capacity 5
EXTERIOR
Headlamps Multi-Reflector Halogen
Front Foglamps Without
Bumper front Black
Bumper rear Without
Front Grille Black
Front Windshield Wiper Mist Only
Overfenders Without
Side Turning Lamp Markers With
Outside Rear View Mirror Black
Door Outside Handle Black
Side Step Without
INTERIOR
Seats front Sliding / Reclining with Headrest (2 pcs)
Seats rear Foldable with Headrest and Tool Box Compartment
Seat Materials Fabric
Speedometer Analog
Tachometer With
Odometer Digital
Steering Wheel and Column 3 - Spoke / Tilt-Adjustable
Map Lamp Without
Clock Digital
Shift Knob / Shift Boot Urethane
Console Box Single
Cupholders / Bottle Holders front Instrument Panel (2 pcs) + Door Trim (2 pcs)
Cupholders / Bottlle Holders rear Door Trim (2 pcs)
Sunvisor Driver (with ticket holder)
Door Trim Moulded, Fabric
Door Packets Front and Rear
Inner Rear View Mirror Day and Night
FUNCTION
Power Features Without
Cigarette Lighter With
Accessory Power Outlet Without
Airconditioning System Single, Manual
Key Remind Without
Antenna Pillar Mounted
Vehicle Security System Without
SAFETY
SRS Airbag Driver
Seatbelts front / rear 3-point ELR x 2 / 3-point ELR x 2 + 2-point NR x 1
Child Proof Lock With
High Mount Stop Lamp Without
Side Door Impact Beam With



return to vigo return to index page email us now at sonivigo@gmail.com
Return to our page on Toyota Hilux Vigo Return to Index Page Email us now at sonvigo@gmail.com



It is our great pleasure to welcome you to our website. According to Statcounter, you are the

web analytics
-th visitor to our site since the beginning of this year. Our Divisions in Thailand, Singapore and United Kingdom and our offices in Dubai, New Zealand and United States will be glad to provide full range of cars, sedans, pickups, vans, trucks and construction and farm machinery in Right Hand Drive or Left Hand Drive from country of your choice.

Jim offers all kinds of new and used vehicles from Thailand, UK, Australia, Dubai ranging from sedans, small cars, family cars, estate cars station wagons, cabriolets convertibles, executive cars, 4x4 pickups, 4x4 SUVs, coupes, Multi-purpose vehicles (MPVs), vans, trucks to construction and farm machinery from Toyota, Honda, Nissan, Mitsubishi, Lexus, Mazda, Isuzu, Infiniti, Audi, Mercedes Benz, VolksWagen, BMW, Porsche, Alfa Romeo, Fiat, Ferrari, Lamborghini, Maserati, Iveco Trucks, Land Rover, Jaguar, Mini, Aston Martin, Bentley, Lotus, Vauxhall, Rolls Royce, Citroen, Renault Cars, Bugatti, Peugeot, Renault Trucks, Chrysler, Jeep, Ford, Chevrolet, Saab, Volvo, Scania Trucks, Volvo Trucks, DAF Trucks, Hyundai, Ssang Yong, Kia, Seat and Skoda
